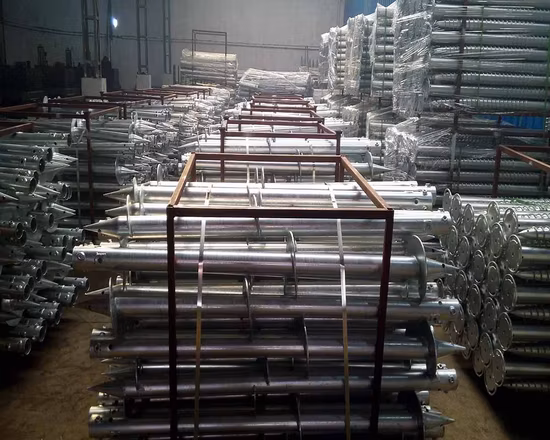

Ground Engineering Tieback Square Shaft Helical Anchor Pier Foundation and Anchoring Systems

Basic Info.

Model NO.	KXD PRY 08
Application	Industrial
Material	Steel
Type	Pile-ground Bracket
Shaft	Customized
Surface Treatment	Hot DIP Galvanizing with an Average of Over 80 Mic
Length	1200/1600/1800/2000mm
Helix	Customized
Raw Material	Customized
Transport Package	Steel Pallet
Specification	customised
Trademark	KXD
Origin	China
HS Code	730110
Production Capacity	50000 Sets Per Year

Packaging & Delivery

Package Size 1200.00cm * 230.00cm * 230.00cm Package Gross Weight 27.000kg

Product Description

Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations,a modern improvement to traditional cement footings. Each pier consists of an engineered steel post with screw-like helices. Helical pile is extendable base equipment which is made up of helical engineered metallic plates that are attached to a central steel shaft using a round or rectangular cross-section. The steel plate thickness, diameter, number, and helices operate are determined through the restricted or supported arrangement's minimal design life, the ecological rust, and geotechnical parameters, along with the design fill demands.Helical piers, also known as helical anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded to them.Ground screw system is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions.Ground screw appliation:solar system;timer-fram construction;advertising and traffic systems;urban garden and landscape construction;flag poles and so on.Screw anchor advantage:Save time;Easily assembled;Save power;Save money;More environmental than Concrete Foundation methodPhotovoltaic screw ground pile can reduce the cost of the foundation of the support system, shorten the installation time, and reduce the environmental impact of the ground photovoltaic support system. As a quick and cost-effective solution, it is applicable to all major solar photovoltaic, wind energy and construction industries. Its high load performance, stability, settlement resistance and pull-out resistance are the reasons for its rapid development.The first piece of the helical pile is called the lead; this is the piece that is first rotated into the ground. The lead has multiple helical blades, also referred to as helical bearing plates, that can vary in size, shape, and number. After the lead follows any number of extensions, depending on the required torque or depth. These are simply shafts that are bolted and pinned to the lead and to each other at their ends. The top of the pile is the incorporated into the foundation system via a bracket or other connection method.Helical Piles are used worldwide to secure residential and commercial buildings, tower foundations, heavy equipment foundations, and many other deep foundation system applications.The shaft can come in either a circular or a square cross section shape and is typically hollow.


Round Shaft Helical Pile
Shaft Size OD in (mm)	Wall Thicknessin (mm)	Metal Areain² (cm²)	Perimeterin (cm)	Helix Sizein	Helix Thicknessin	Lead Lengthft	Extension Lengthft
2.875 (73)	0.203(5.2)	1.7 (11.0)	9.0 (22.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
2.875 (73)	0.276(7.0)	2.3 (14.8)	9.0 (22.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
3.5 (89)	0.300 (7.6)	3.0 (19.5)	11.0(27.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
4.5 (114)	0.337(8.6)	4.4 (28.4)	14.1(35.9)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
6.625 (168)	0.28 (7)	5.58 (36.0)	20.8(52.8)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
8.625 (219)	0.25(6)	6.58 (42.5)	27.1(68.8)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
All above sizes, steel grade are customizable.

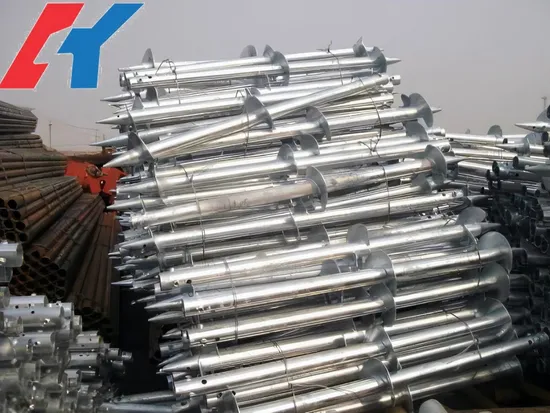

Ground Engineering Tieback Square Shaft Helical Anchor Pier Foundation and Anchoring Systems

Helical anchor system may be used to reestablish new foundations or restore present ones. Helical foundation anchors are used for lighthouses, roads, railroads, telecommunication, and in a lot of different businesses that need rapid installation or structure near to present constructions. Evidence, maintaining structures, other common places make use of because they are appropriate for compression in addition to tensile loads.Helical Piers--Description:The original helical pier was designed as a wooden shaft with an iron helix for use in lighthouse foundations.Today, helical piers are one of the two most common types of structural piering devices for residential foundation applications in use today. Helical piers are an excellent choice for foundation repair and stabilization when lightstructural loads, unstable rock foundations or very deep load bearing stratums are present.Ground Helical Anchor& Earth Helical Piers--Advantages.A time-proven, versatile, and technically sound system.· Lower cost and faster installation than other methods· Installs quickly with small or handheld equipment.· Can be installed in limited-access areas or tight access.· Site cleanliness and minimize damage to landscape.· Soil load bearing capacity is tested during installation.· Helical anchors available with single, double and triple helix blades.What are Helical Anchors?A helical anchor is a deep foundation solution which is used in situations when standard solutions cannot be applied to your foundation project. Situations where a foundation may be exposed to moisture for a longer period of time or where the soil conditions are not normal for use, in such a situation a deep foundation solution like a Helical anchor is requiredSpiral ground pile is a new type of foundation building material, which can partially replace the traditional reinforced concrete pouring construction technology, making the building foundation more flexible and fast. It saves the construction cost of ground leveling, waste soil treatment and excavation, and can be widely used in foundation construction in all walks of life.1. Structural advantagesThe spiral ground pile is driven underground in a revolving way, so the soil is not easy to loosen, and the soil conditions can be well used. According to the blade structure of the screw ground pile, it has good tensile pull-out force and insertion grip.2. Simple and efficientAs a new type of foundation technology, spiral ground pile has many outstanding advantages, such as convenient construction, short period, little impact from the construction environment, no damage to the local environment, easy migration and recycling.3. Low costCompared with formwork erection, rebar binding and pouring of concrete. Embedded anchor bars, curing, formwork removal, foundation soil backfilling and other procedures, the spiral ground pile only needs to be positioned and driven, and the material and labor costs can be saved.4. All weather constructionIt has little impact on the environment and can be constructed under most climatic conditions, such as rain, snow, freezing and other weather.What are the benefits of Helical Anchors?There are various benefits of using a helical anchor. Some of them are as follows: It is easy to install and removeIt can be installed easily in any weather conditionIt reduces carbon footprintsIt has minimum vibrationIt reduces foundation costsIt does not require excess soilThe installation process is very clean and tidy as there are no spoils left after installationWhat would be the cost of Helical Anchors?There are various factors involved while deciding the cost of helical anchors. Those factors are:LocationType of workCondition of foundationDepth of pile installation How To Install Helical Anchors?Helical anchors are installed before pouring the foundation or the soil foundation has been damagedHelical anchors are screwed into the soil and depending upon the location they are attached to the pre-existing foundation with brackets or screws. After the helical anchors are installed the foundation is safe and is ready to combat any future damage due to compression and tension.How many Helical Anchors are required ?The number of helical anchors that you require depends upon the following factors: Recommended distance between the pilesThe type of structureWhat is the purpose of Helical AnchorsThe main purpose of a helical anchor is to transfer the structural load to the soil. There are various other applications also like tension, compression, and lateral load where helical anchors are used. How to use Helical Anchors?Drive the helical anchors into the soil up to the predetermined load capacity.Space the helical anchors at predetermined intervals to share the weight of the structure.For foundation repair works, attach the brackets to the base of the wall so that the weight is transferred to the anchor.Install to a height below the ground level where they meet the required torque.Where can i get helical anchors?You can get it by searching for us by contacting us directly.Where can i purchase helical anchorsYou can contact us to purchase the best quality helical anchors at a very affordable price directly from us.
